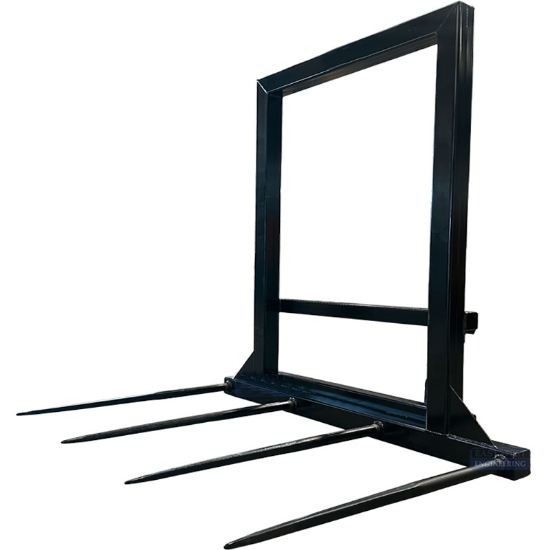

Picture of Bale Spear Attachment with Challenge Hitch / Aus Hitch
Picture of Bale Spear Attachment with Challenge Hitch / Aus Hitch
Picture of Bale Spear Attachment with Challenge Hitch / Aus Hitch
Picture of Bale Spear Attachment with Challenge Hitch / Aus Hitch
Picture of Bale Spear Attachment with Challenge Hitch / Aus Hitch

Bale Spear Attachment with Challenge Hitch / Aus Hitch

This Bale Spear Attachment is designed for the safe and easy handling of bales and is suitable for use with most machinery. Fitted with Challenge Hitch / Aus Hitch quick hitch
Part No: EW-BSA-CH-Hitch
*
$1,800.00 excl GST

Bale Spear Attachment with Challenge Hitch / Aus Hitch



This Bale Spear Attachment is designed for the safe and easy handling of bales and is suitable for use with most machinery. Fitted with Challenge Hitch / Aus Hitch quick hitch

Features:
  • Ideal for picking up multiple hay bales (round & square) with minimal effort
  • Available without hitch (blank) or in models to suit Forklift, Euro, 3PL, Skid steer, Burder or Challenge fitment
  • 4 removable bale spears supplied
  • Spears taper for easier penetration and removal from the bales
  • Made of high tensile steel for strength and durability
  • Not suitable for Challenge loaders pre 2003 (check dimensions below)
Specifications:
  • Working Load Limit (WLL) : 1600kg
  • Load Centre : 500mm
  • Sleeve Size : Conus II
  • Spear Dimensions : 45 x 1100mm clear length
  • Overall Dimensions : 1800(l) x 1300(w) x 1800(h) mm
  • Unit Weight : 149kg
  • Suits Challenge Hitch / Aus Hitch (check your hitch)
  • 43mm diameter top lug
  • 37mm diameter bottom pin
  • 265mm between lug and pin centres
  • 1118mm inside to inside top
  • 1067mm outside to outside bottom
