Pallet Forks Challenge Hitch / Aus Hitch

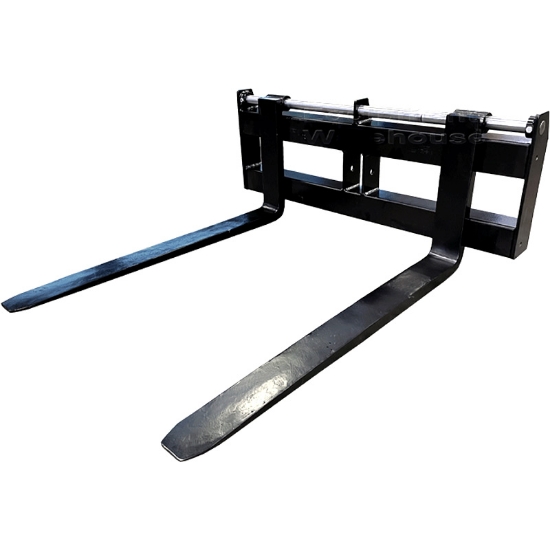

Pallet Forks - Challenge Hitch / Aus Hitch with this Hinged Carriage is a heavy duty Class 2 fork carriage designed to suit a tractor, skid steer or track loaders and comes fitted with pin mounted fork tines.
Part No: EW-FWFC-CH
*
$1,450.00 excl GST

Pallet Forks Challenge Hitch / Aus Hitch



This Hinged Carriage is a heavy duty Class 2 fork carriage designed to suit a tractor, skid steer or track loaders and comes fitted with pin mounted fork tines.

Features:
  • Fitted with 125 x 32mm fork tines with a length of 1070mm
  • Pin mounted fork tines prevent hook-up when reversing
  • Fitted with Challenge Hitch / Aus Hitch plates
  • Q-Fit carriage designed for easy fitment of optional accessories
  • Enamel paint finish
  • Not suitable for Challenge loaders pre 2003 (check dimensions below)
Specifications:
  • Working Load Limit (WLL) : 2000kg
  • Load Centre : 500mm
  • Carriage Width : 1200mm
  • Max. Fork Tine Spread : 1150mm
  • Unit Weight : 127kg (excl. hitch)
  • Suits Challenge Hitch / Aus Hitch (check your hitch)
  • 43mm diameter top lug
  • 37mm diameter bottom pin
  • 265mm between lug and pin centres
  • 1118mm inside to inside top
  • 1067mm outside to outside bottom
