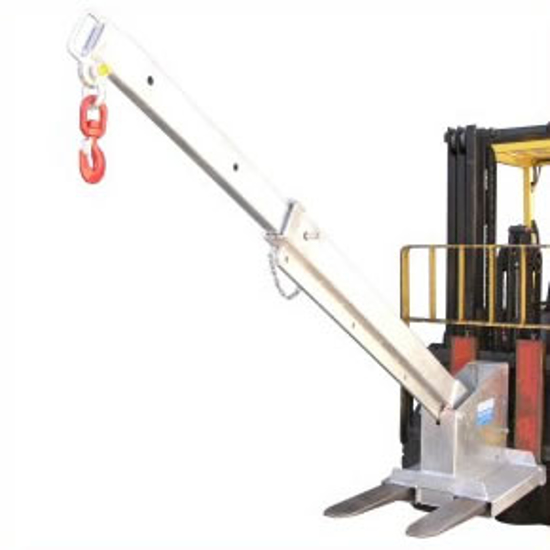

Tilt Jib Long Jib Attachment 2500Kg SWL

The type EW-TJCL25 Tilt Jib (Long) is designed with a tilt facility allowing extra height to compensate for the hook and sling length lost when lifting with jib attachments.
Part No: EW-STJL2.5
*
$2,030.00 excl GST

The type EW-TJCL25 Tilt Jib (Long) is designed with a tilt facility allowing extra height to compensate for the hook and sling length lost when lifting with jib attachments. A maximum of 2.48 metres can be gained while the Jib can be fully extended to 3.58 metres. Simply slide onto the Fork Tines and secure with safety chain.

  • Supplied with safety swivel Hook and Shackle
Products specifications
FinishZinc
SWL (kg)2500
Load Centre (mm)1005
Pocket Size (mm)165 x 65
Pocket Centres (mm)337
Horizontal Centre of Gravity (mm)5
Vertical Centre of Gravity (mm)225
Overall Length when closed (mtr)2.15
Unit Weight (Kg)180
